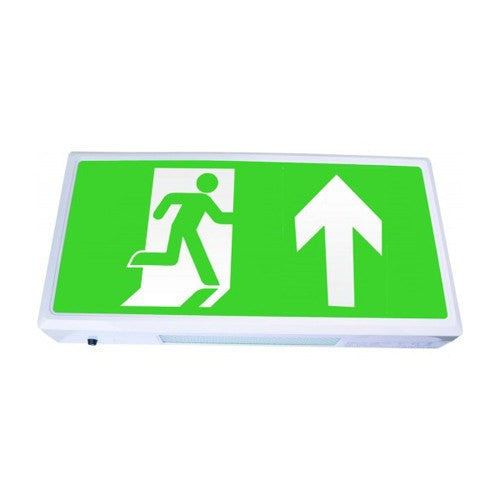

IP20 5W Universal LED Emergency Exit Box Fitting (up Arrow)

This LED light source exit box is supplied with an ISO 7010 arrow Up legend panel that complies to the latest regulations, please note this cannot be used if the the older style legends are in place on other emergency exit signs. Maintained (permanently on or switched) and non maintained (only on during power failure) operation can be achieved dependant on installation wiring. As always a permanent live supply is required to monitor the power status and to charge the internal batteries.

The white fire retardant polycarbonate body has an opal diffuser panel at the base to offer downward light. This is especially useful when the light is installed above a door. A 2 year warranty is provided with this product.

• LED strip light source
• 5 watt power consumption
• 3 hour maintained/non maintained operation
• ISO 7010 Arrow up legend only
• 37 metre viewing distance (legend H184mm, W 383mm, D 3mm)
• Compatible with EES8 series legends
• White polycarbonate body
• 3.6v 2Ah Ni-Cd battery
• 230 Volt mains supply. Switched & permanent live required.
• IP20, indoor use only
• Dims: H 207mm, W 404mm, D 55mm
